400W digital ballast

400W digital ballast

Click to consult

Service hotline:

137-8892-1527

PRODUCT DETAILS

Product Features

● Built-in timed dimming function
International universal full range input (90-305Vac)
● Short circuit/open circuit/overvoltage/overcurrent protection
Up to 93% efficiency
PFC power factor correction
Suitable for streetlights, tunnels, landscape lighting, etc




Electrical environment and dimensions


Operation temperature -20℃--+60℃
Wtorage temperature -40℃--+80℃
Maximum shell temperature 60℃
Working humidity 5%-92%RH
Efficiency Up to 93%(220V/full load)
Overall dimensions 204*108*68mm

INPUT VOLTAGE

90-305VAC-63HZ
Surge current 35A MAX
Maximum output power 400W
Protection function Up to 93% overvoltage, overcurrent, over temperature, short circuit, open circuit, output to ground, input output reverse connection
Voltage protection 0-100V does not start, 101-175V half power; 175-305V full power, 306-380V extinction protection


Application

Suitable for street lights, tunnel lights, and landscape lighting

Model and key parameters
Model THD Power factor Efficiency Trigger voltage Notes
LT400EH161T <15% 0.98 93% 3KV-5KV Customizable built-in dimming
LT400EH161D1 <15% 0.98 93% 3KV-5KV 0-10V dimming

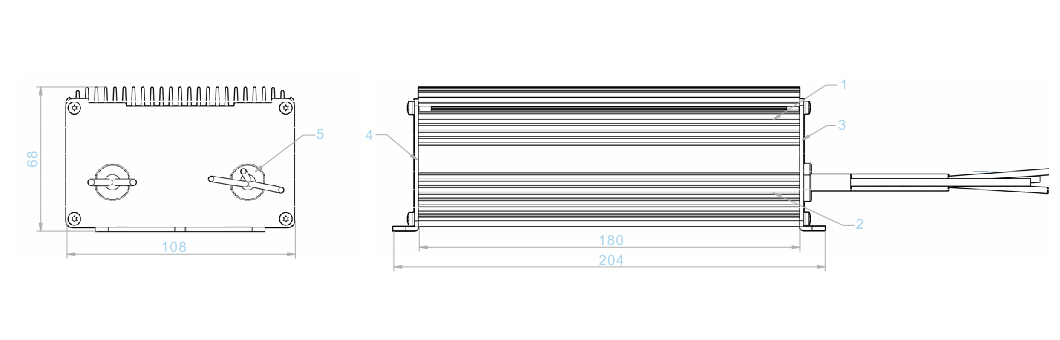

Overall dimensions
