High-power intelligent programmable power supply series
High-power intelligent programmable power supply series
PRODUCT DETAILS
Product Features:
● Constant current + constant voltage, constant power design
● The output voltage and current parameters are programmable setting
● High-energy auxiliary power supply output: 12V 200mA
● Built-in PFC functional design (with power factor correction)
● Multi-directional protection functions: OLP, OCP, OTP, SCP
● Lightning protection: line to line 4KV, line to ground 6KV
● IP67, external use (dry, wet or rainy)
● 5 year warranty

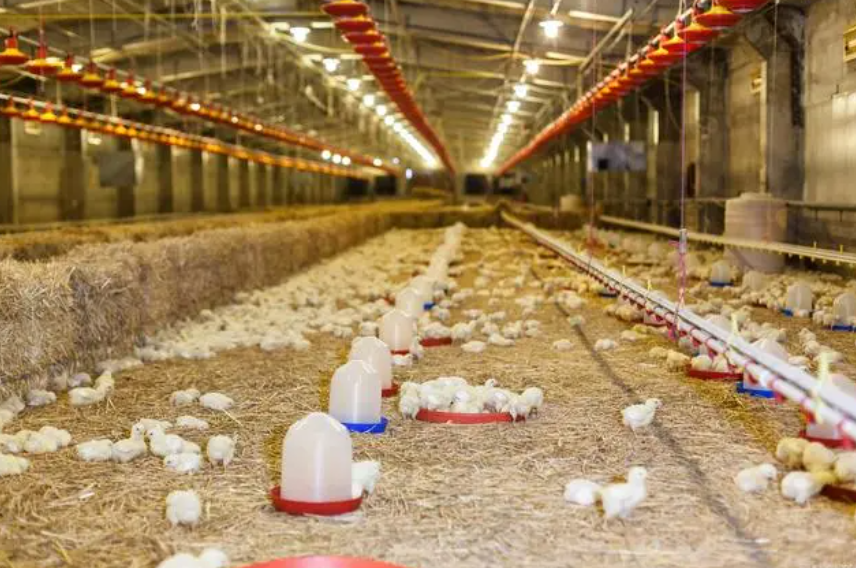

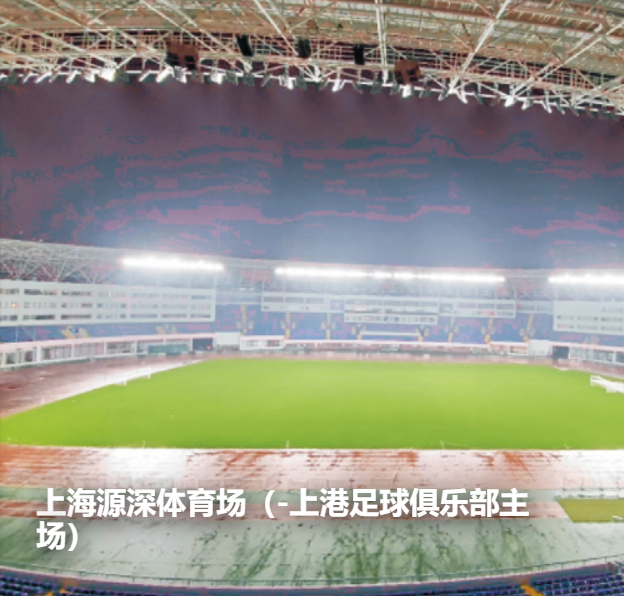

● Application to plant light filling, sports venues, etc
|
model |
input voltage（Vac） |
output power (W) |
output voltage（Vdc） |
output(current)（mA） |
productiveness |
Dimensions (l * w * h) |
|
VNL3201054PE101 |
100-227 |
320 |
27-54 |
0-5.9 |
93% |
257*68*32.5 |
|
VNL480T024HE001 |
120-277 |
480 |
12-24 |
20-23.5 |
94% |
260.8*125*49 |
|
VNL480T036HE001 |
18-36 |
13.3-16 |
94% |
262.4*125*49 |
||
|
VNL480T048HE001 |
24-48 |
10-11.8 |
94% |
262.4*125*49 |
||
|
VNL480T054HE001 |
27-54 |
8.9-10 |
94% |
262.4*125*49 |
||
|
VNL480T054HE302 |
27-54 |
8.9-10 |
94% |
250.4*125*48.5 |
||
|
VNL600T048DB001 |
120-277 |
480 |
27-54 |
11.1-12.5 |
94% |
280.8*145*48.5 |
|
VNL600T054HE302 |
600 |
27-54 |
11.1-12.5 |
94% |
270.4*125*48.5 |
|
|
VNL650T054HE001 |
120-277 |
650 |
27-54 |
12-14 |
94% |
280.8*145*48.5 |
|
VNL1K0T054HE001 |
120-277 |
1000 |
38-54 |
19(MAX) |
94% |
405*117*37 |
|
VNL1K2T054HE001 |
120-277 |
1200 |
27-54 |
22.2-26 |
94% |
299*215*80 |

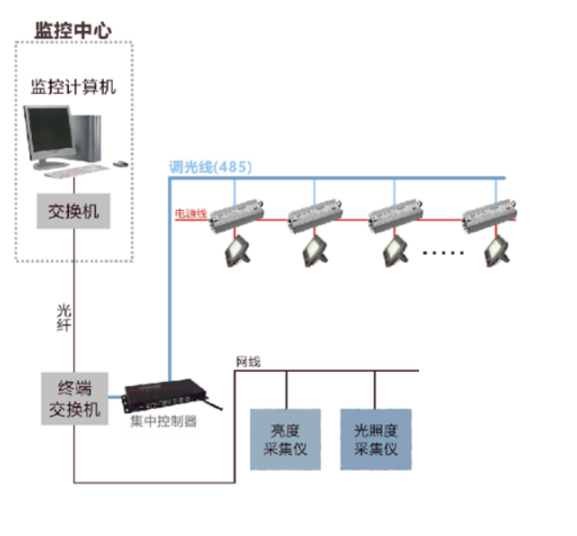

Lighting color temperature adjustable control system
