Adjustable light power supply LED
Adjustable light power supply LED
PRODUCT DETAILS
Strategy set by the user, or control the circuit control, group control, single lamp control and overall control through external equipment signals.
● With independent address, output electrical parameter information collection function, can real-time view of the power supply
● Three-in-one dimming function (0 ~ 10 Vdc, PWM signal and resistance dimming)
● Dimming can be turned off, isolation setting l IP65 / IP67 protection level, inside and outside the household installation can be;
● The power of the products is 40W, 60W, 75W, 100W and 150W
|
Model |
Input voltage （Vac） |
Output power (W) |
Output voltage （Vdc） |
Output(current) （mA） |
Productiveness |
Dimensions (l * w * h) |
|
VNL0401024AE |
90-305 |
40 |
24 |
0-1.67 |
87% |
80*60*33.5 |
|
VNL0401036AE |
36 |
0-1.11 |
89% |
80*60*33.5 |
||
|
VNL0401048AE |
48 |
0-0.83 |
90% |
80*60*33.5 |
||
|
VNL0601024AE |
90-305 |
60 |
24 |
0-2.5 |
86% |
116*58.8*32.5 |
|
VNL0601036AE |
36 |
0-1.67 |
87% |
116*58.8*32.5 |
||
|
VNL0601048AE |
48 |
0-1.25 |
88% |
116*58.8*32.5 |
||
|
VNL0751024AE |
90-305 |
75 |
24 |
0-3.15 |
89% |
116*58.8*32.5 |
|
VNL0751036AE |
36 |
0-2.08 |
89% |
116*58.8*32.5 |
||
|
VNL0751048AE |
48 |
0-1.56 |
92% |
116*58.8*32.5 |
||
|
VNL1001024AE |
90-305 |
100 |
24 |
0-4.16 |
89% |
150*68.2*34.2 |
|
VNL1001036AE |
36 |
0-2.87 |
89% |
150*68.2*34.2 |
||
|
VNL1001048AE |
48 |
0-2.08 |
92% |
150*68.2*34.2 |
||
|
VNL1501024AE |
90-305 |
150 |
24 |
0-6.25 |
89% |
180*68.2*34.2 |
|
VNL1501036AE |
36 |
0-4.16 |
89% |
180*68.2*34.2 |
||
|
VNL1501048AE |
48 |
0-3.125 |
90% |
180*68.2*34.2 |

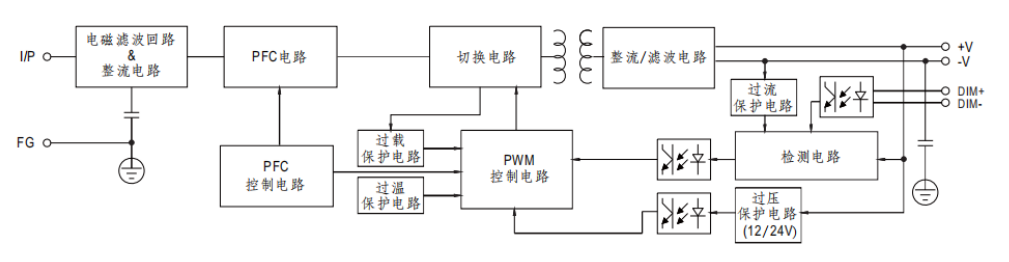

Block diagram；Flow chart；Flow diagram

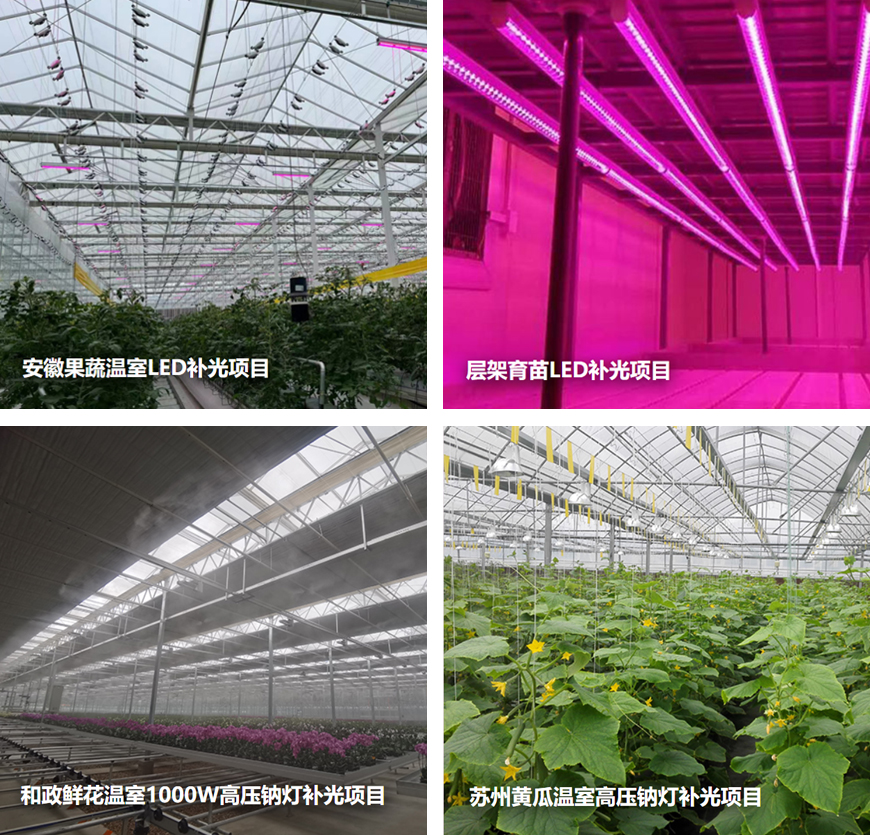

Application cases：
