Outdoor digital ballast
Outdoor digital ballast
PRODUCT DETAILS
Product Features
● International universal full range input (90-305Vac)
● Short circuit/open circuit/overvoltage/overcurrent protection
● Ip65 waterproof grade
● PFC power factor correction
● Suitable for streetlights, tunnels, landscape lighting, etc
| Operation temperature | -20℃--+60℃ |
| Wtorage temperature | -40℃--+80℃ |
| Maximum shell temperature | 60℃ |
| Working humidity | 5%-92%RH |
| Efficiency | Up to 93%（220V/full load） |
| Overall dimensions | 225*153*67mm |
| INPUT VOLTAGE | 90-305VAC-63HZ |
| Surge current | 35A MAX |
| Maximum output power | 400W |
| Protection function | Over voltage, over current, over temperature, short circuit, open circuit, output to ground, input output reverse connection |
| Voltage protection | 0-100V does not start, 101-175V half power; 175-305V full power, 306-380V extinction protection |
Application
Suitable for street lights, tunnel lights, and landscape lighting
Model and key parameters
| Model | THD | Power factor | Efficiency | Trigger voltage | Notes |
| LP150EHZ1T* | <15% | 0.97 | 93% | 3KV-5KV | Customizable built-in dimming |
| LP250EHZ1T* | <15% | 0.98 | 93% | 3KV-5KV | Customizable built-in dimming |
| LP400EHZ1T* | <15% | 0.98 | 93% | 3KV-5KV | 0-10V dimming |
| LP150EHZ1D* | <15% | 0.97 | 93% | 3KV-5KV | Customizable built-in dimming |
| LP250EHZ1D* | <15% | 0.98 | 93% | 3KV-5KV | Customizable built-in dimming |
| LP400EHZ1D* | <15% | 0.98 | 93% | 3KV-5KV | 0-10V dimming |

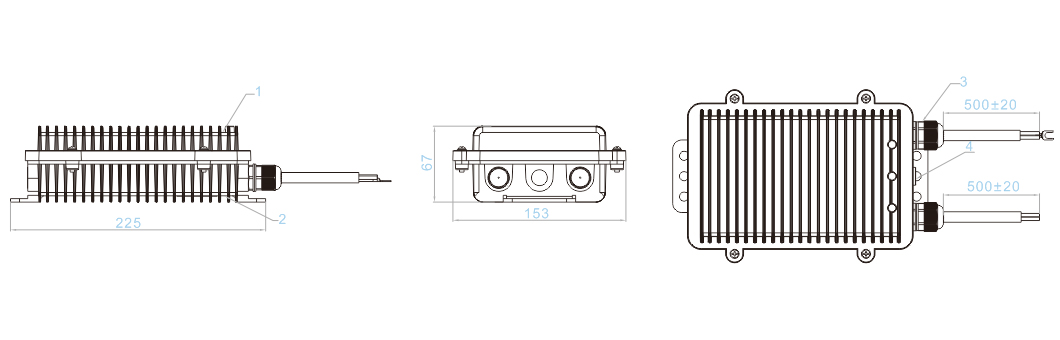

Overall dimensions
