Embedded communication power supply -1U G1402
Embedded communication power supply -1U G1402
PRODUCT DETAILS

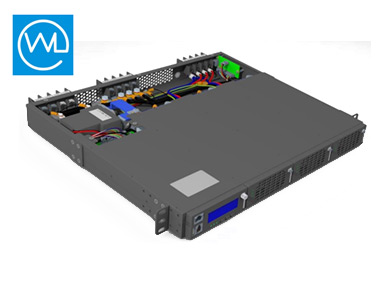

Embedded communication power supply -1U G1402
|
Input characteristics |
||||
|
|
||||
|
Project |
Technical requirement |
Unit |
Remarks |
|
|
Rated input voltage |
220V three-phase four wire system
|
Vac |
|
|
|
Input Voltage |
85-300 |
Vac |
|
|
|
Over voltage protect |
≥300 |
Vac |
|
|
|
Starting impulse current |
- |
A |
|
|
|
Maximum input current |
≤65 |
A |
|
|
|
Efficiency |
≥96% |
|
Rated input voltage full load |
|
|
Input no-load power loss |
- |
W |
|
|
|
LED display |
have |
|
|
|
|
输出特性 |
||||
|
Project |
Technical requirement |
Unit |
Remarks |
|
|
Output rated voltage |
-53.5 |
Vdc |
|
|
|
Output voltage range |
-42 - -58 |
Vdc |
|
|
|
Change in no-load output voltage △V |
- |
Vdc |
|
|
|
Output minimum current |
0 |
A |
|
|
|
Effective value of output current （RMS） |
225 |
A |
|
|
|
THDV |
5% |
|
50% -100% load |
|
|
DC Component |
- |
|
|
|
|
Output ripple and noise |
- |
mVp-p |
- |
|
|
On/off overshoot amplitude |
- |
|
|
|
|
Dynamic response |
Over shoot:≤ ±5% Vo Recovery time: ≤ 200us 25%~50%,50%~75%,10%~90% Rate 0.5A/us 与 1A/us |
|
|
|
|
Turn-on delay |
≤10S |
|
At rated input voltage and full load bar
|
|||||
|
Output maintenance time（mS） |
- |
|
|
|||||
|
Primary load branch |
None |
|
|
|||||
|
Secondary load branch |
2*125A |
|
|
|||||
|
Battery branch |
2*125A |
|
|
|||||
|
Capacity of primary load branch contactor |
None |
A |
|
|||||
|
Battery branch contactor capacity |
400 |
A |
|
|||||
|
Protective characteristics |
||||||||
|
Project |
Technical requirement |
Unit |
Remarks |
|||||
|
Io Output overcurrent point |
Protection point |
Protection point 4850 Single module 50
|
A |
|
||||
|
Vo output overvoltage point |
Protection point |
–58.5–60.5V |
Vdc |
Settable |
||||
|
Over Temperature Protection |
Protection point |
Rectifier module 80±5℃ |
℃ |
|
||||
|
Short Circuit Protection |
Rectifier module protection |
|||||||
|
Project |
Standard (or test conditions) |
Remarks |
||||||
|
|
|
|
||||||
|
Rectifier module access |
Access model |
Gauss Bao 4850 rectifier module, 4875 rectifier module |
|
|||||
|
Maximum number of connections |
3 |
|||||||
|
Access method |
CAN protocol, dynamic address/fixed address |
|||||||
|
Monitoring quantity |
Analog input |
None |
|
|||||
|
Input dry contact |
None |
|||||||
|
|
Output dry contact |
None |
|
|
Communication |
Downlink communication |
1-way CAN |
|
|
Upstream communication |
Either RS485 or RS232 |
||
|
Debug Interface
