LED dimmable power supply
LED dimmable power supply
PRODUCT DETAILS
Gle lamp control and overall control through external equipment signals
● With independent address, output electrical parameter information collection function, can real-time view of the power supply
● Three-in-one dimming function (0 ~ 10 Vdc, PWM signal and resistance dimming)
● Dimming can be turned off, isolation setting l IP65 / IP67 protection level, inside and outside the household installation can be;
● The product power is 40W, 60W, 75W, 100W and 150W 240W
|
model |
input voltage （Va（Vac） |
output power (W) |
output voltage（Vdc） |
output(current)（mA） |
productiveness |
Dimensions (l * w * h) |
|
VNL050-AB |
90-305 |
50 |
22-56 |
0.53-2.1 |
87% |
80*60*33.5 |
|
VNL075-AB |
90-305 |
70 |
22-56 |
0.65-2.1 |
86% |
116*58.8*32.5 |
|
VNL100-AB |
90-305 |
100 |
22-56 |
0.87-2.78 |
89% |
116*58.8*32.5 |
|
VNL150-AB |
90-305 |
150 |
22-56 |
1.4-4.17 |
89% |
116*58.8*32.5 |
|
VNL240-AB |
90-305 |
240 |
22-56 |
2.44-6.6 |
90% |
150*68.2*34.2 |

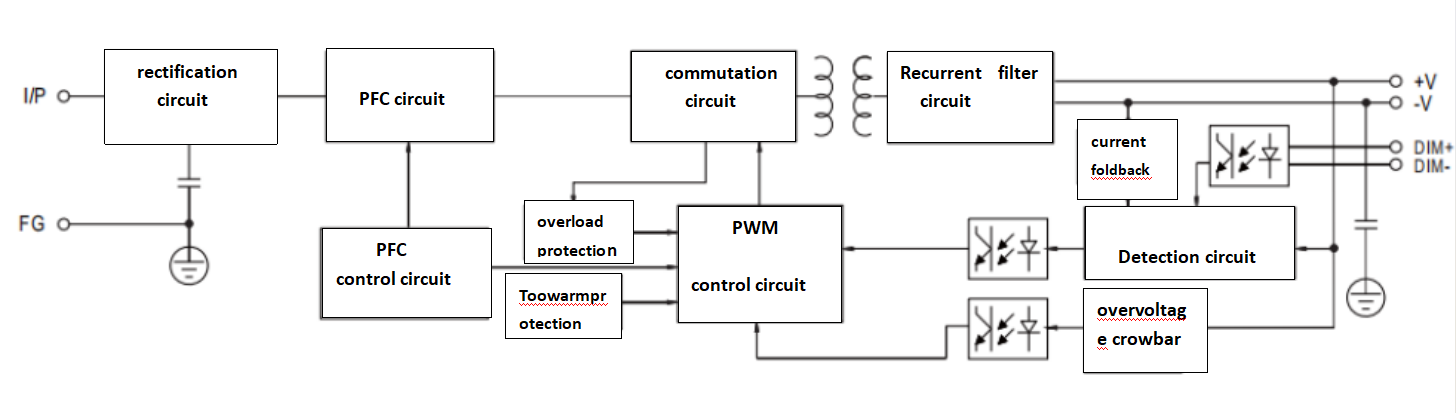

Block diagram；Flow chart；Flow diagram
