PRODUCT DETAILS

Product Information
● Input voltage range: 85-264VAC/120-370DC
● AC/DC dual use (same terminal input voltage)
● Operating temperature range: -40 ℃ to+70 ℃
● High efficiency and reliability
● DC OK function
● Active PFC function
● 150% peak power output for 3 seconds
● Power on LED indicator light
● Output short circuit, overcurrent, overvoltage, and temperature protection
● Complies with certification standards such as IEC/UL/BS EN 62368
● Meet 5000m altitude applications
● Overvoltage level II
● Indoor use

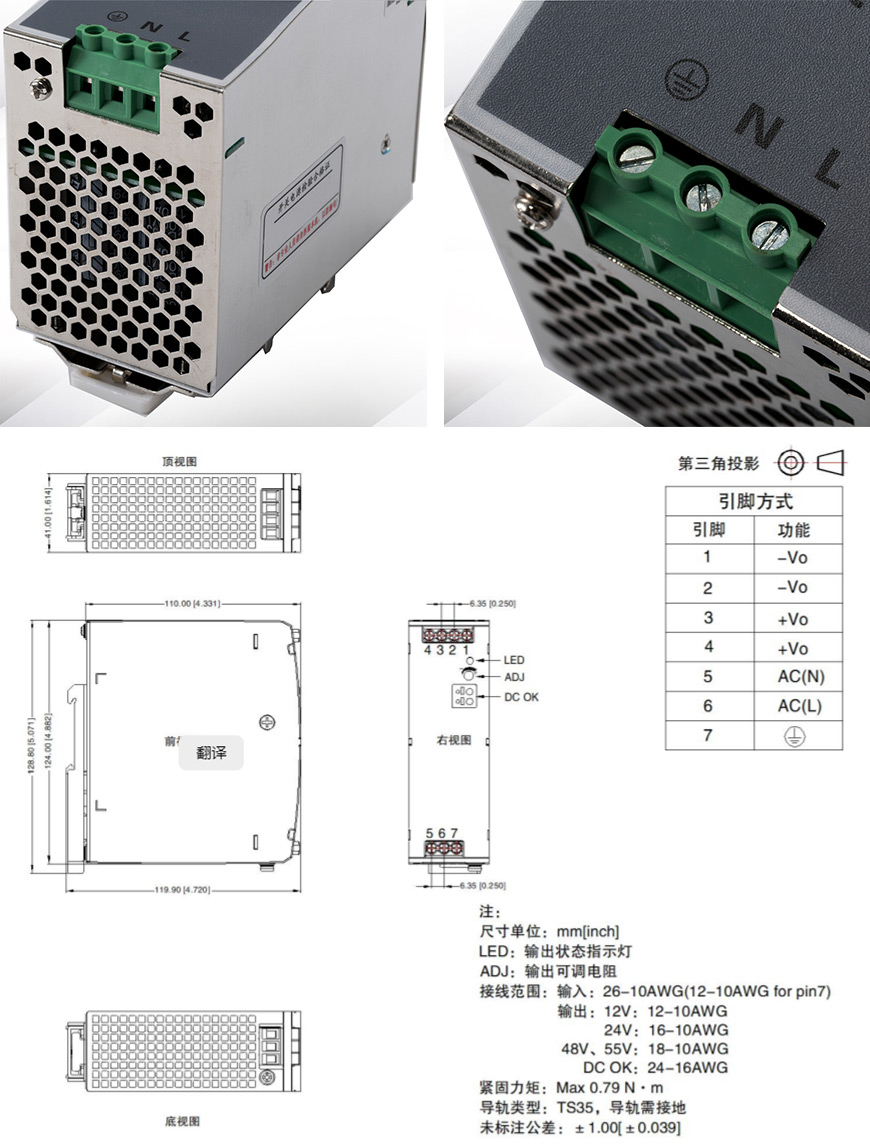

● External dimensions 124.00 x 41.00 x 110.00 mm
